◆16*10/100mbps POE port,2*10/1000mbps UP Link port +1 xSFP
◆250m Distance
◆Support IEEE802.3AF/AT
◆Whole Power:30W(52V 2.3A)
◆All port supported by MDI/MDIX auto flip and self negotiation
◆Supply 16x 10/100Mpbs adaptive high speed forwarding data packet non-lost port.
◆Support IEEE802.3x flow control for Full-duplex mode and backpressure for Half-duplex mode.
◆Each port max. power supply reached 250W.
◆IP Camera
◆IP Phone
◆Computer Networks

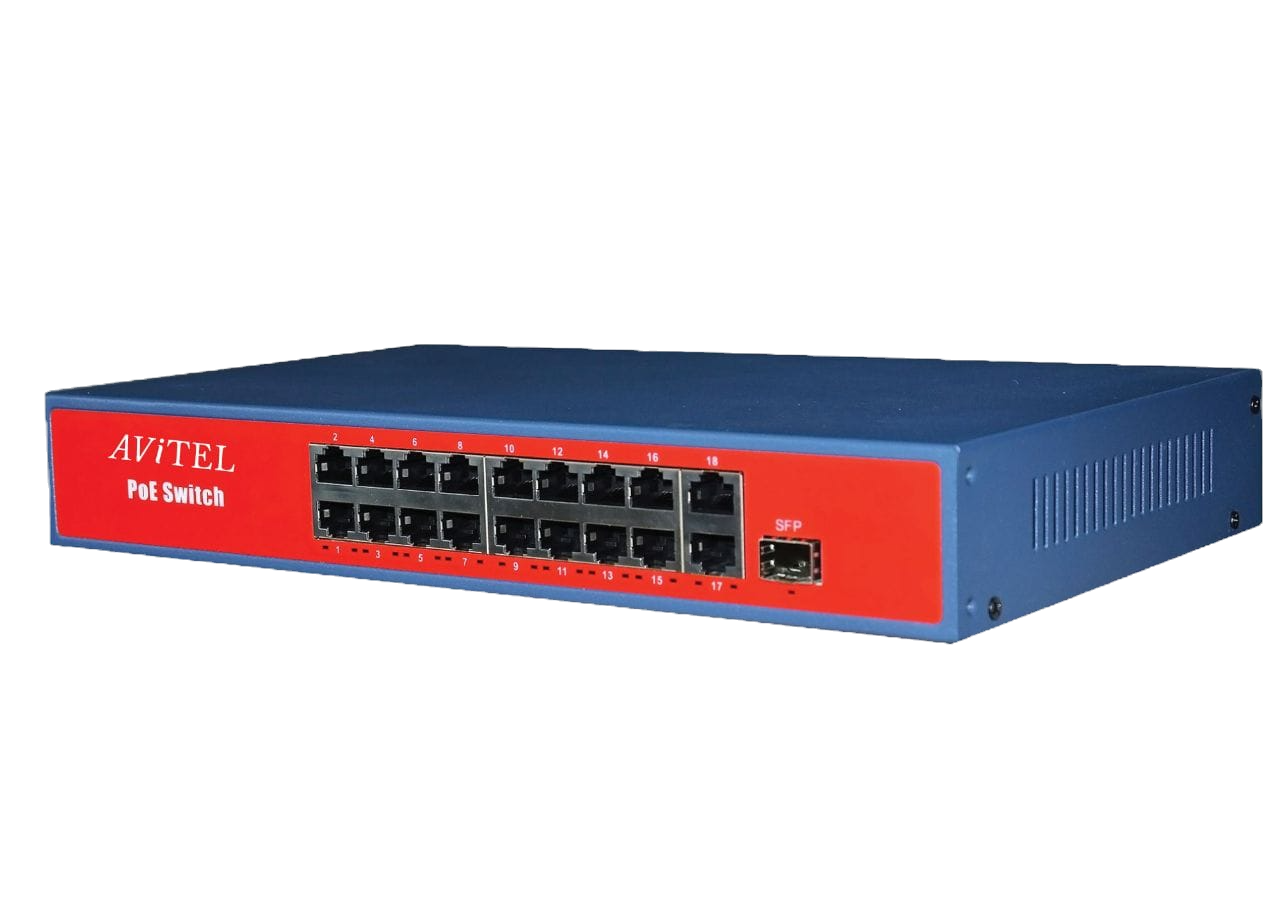

SW-HI-Q016A 10/100Mbps

AZN 389.99

*Product-16 Port POE Switch
*POE Port-1 to 16 support IEEE802.3AF/AT Standard
*Output Power-250W/30W IEEE802.3af/at
*Power Pin-Both 1/2+、3/6- and 4/5+7/8-
*Whole Power ≤30W (52V 2.3A)
*POE Protocol - IEEE 802.3af/IEEE 802.3at
*POE Type - End span
*Power Distance - ≤250m
*Network Standard - IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
*Network Medium - 10/100BASE-TX:5 class and above non shielded twisted pair
*Data Distance - ≤250m
*Switch Capability - 2.4Gbps
*Forwarding Mode - Store and forward
*Forwarding Rate - 10BASE-T:14880PPS/port 100BASE tx14800pps/port
*MAC Address - MAC address table 4K
*Port Function - Power priority mechanism, fast and forward, MAC automatic learning and agingIEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
*LED Indicator - Each port occupied 1 LINK/ACT.100Mbps,POE Status Indicator, Whole power indicator
*Working Environment - Working temperature：-10°-- 55°C
*Weight - kg
*Size -
